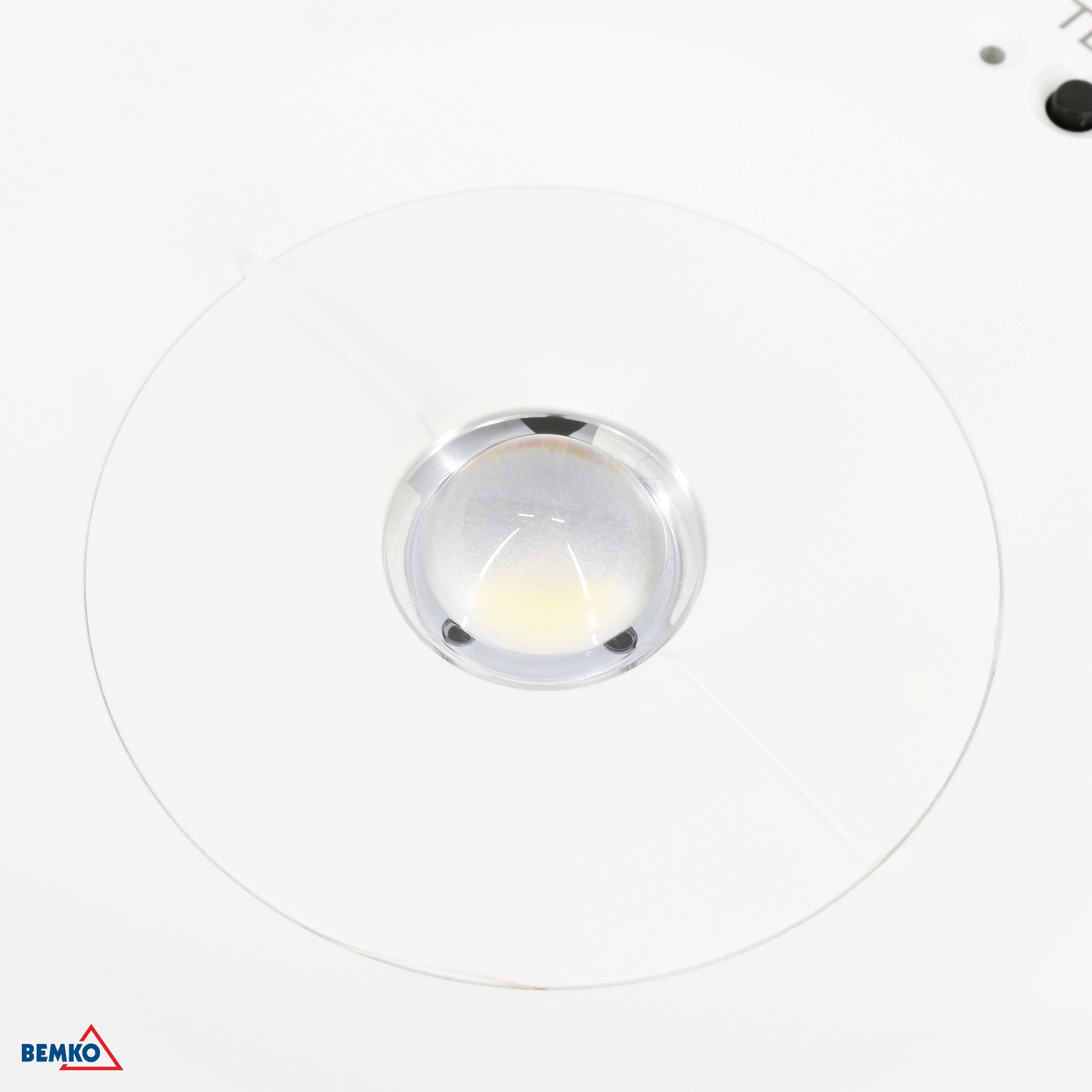

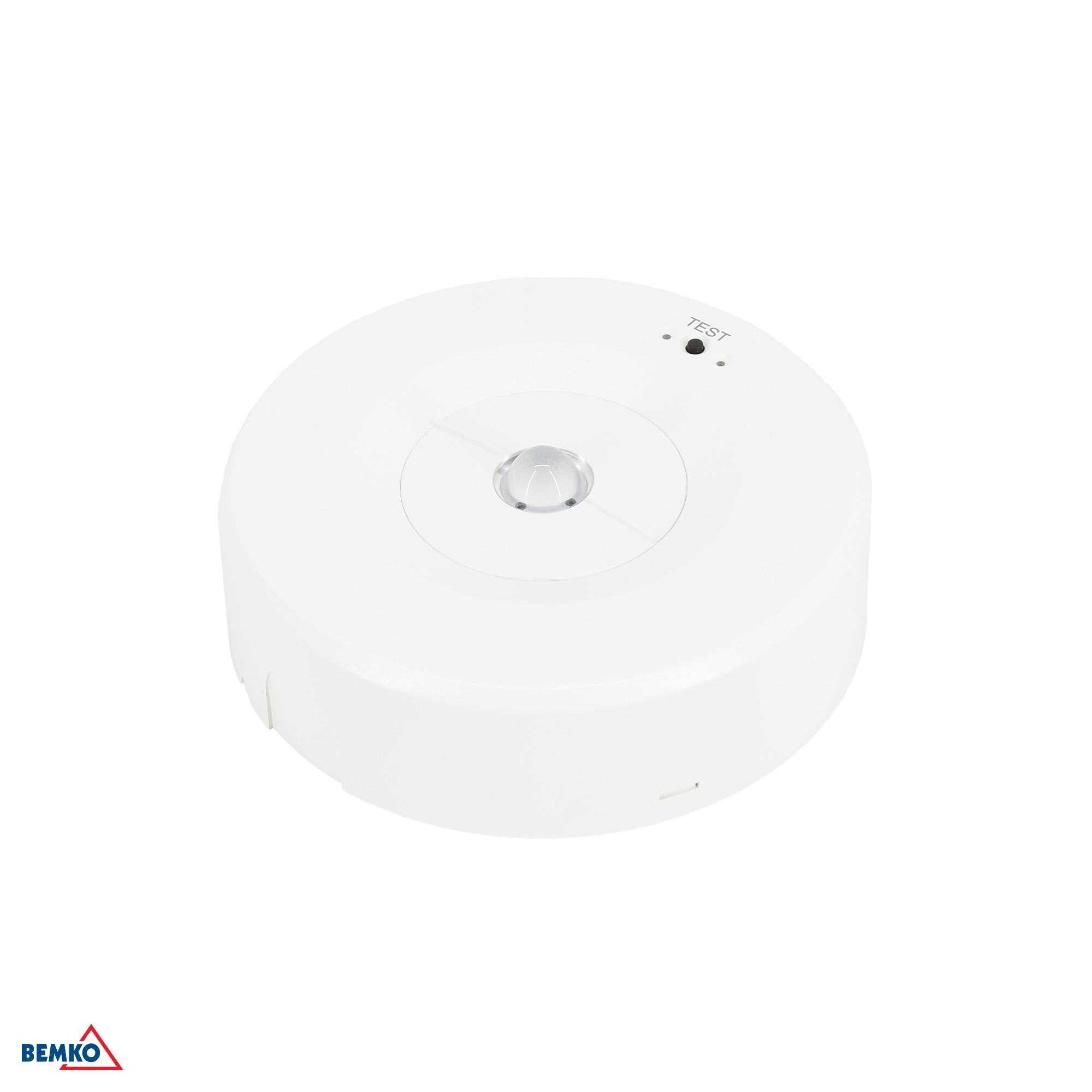

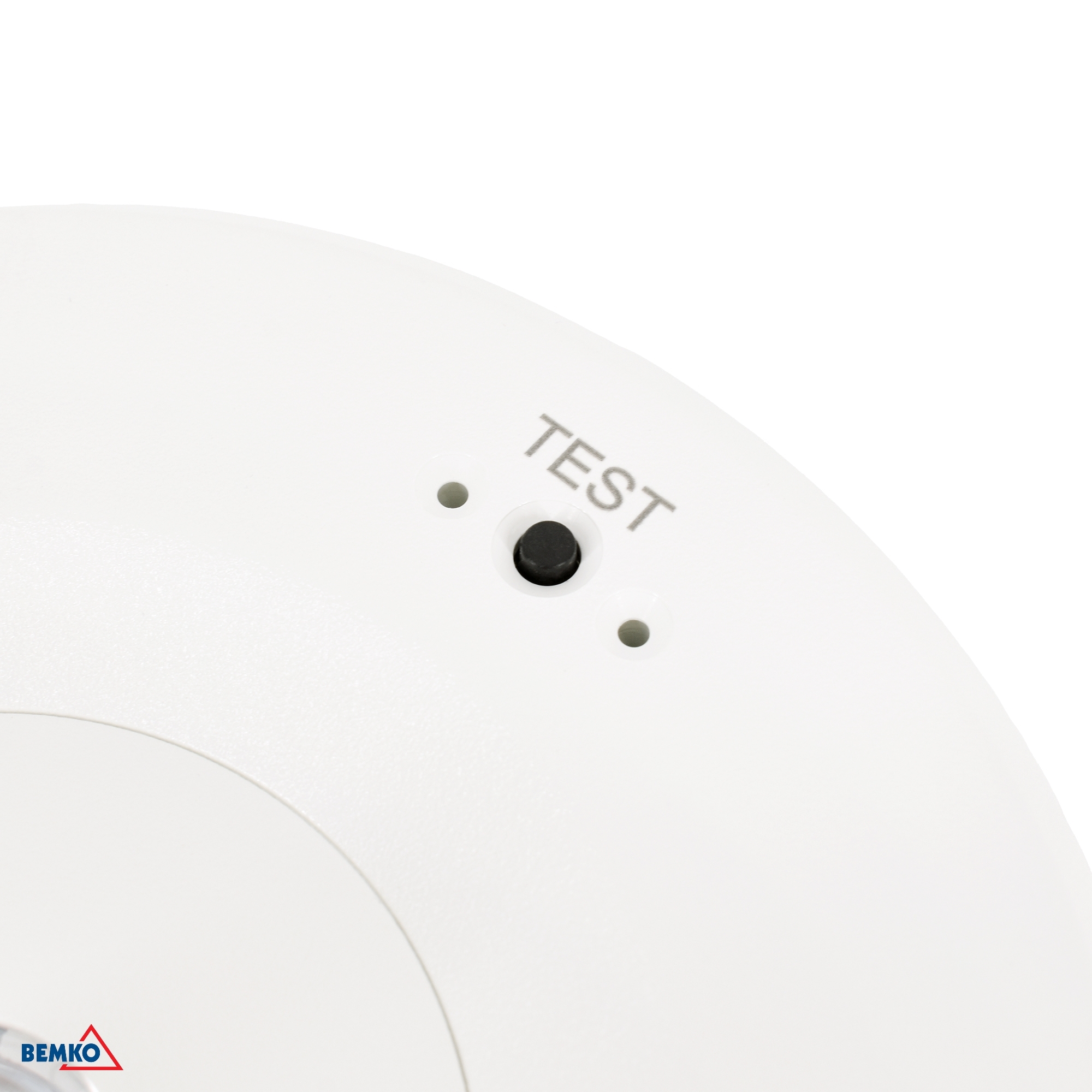

EMERGENCY LUMINAIRE SKALER 2 ROUND 3W LENS SET IP20 AUTOTEST 3H WHITE

Code: C90-SKL2-R-3ZS-AT3H-WH

EAN: 5902138409203

Technical specification

Light data
Color rendering index	CRI> 70
Color temperature	6500K
Luminous flux	160lm

Installation Data
Height	39,5mm
Length	130,5mm
Width	130,5mm

Electrical data
Nominal voltage	Un: 230V~ 50Hz
Power consumption	3W

Certificates and markings
Protection class	Class II
Degree of protection	IP20

Other
Battery	Li-FePO4 1600mAh 3,2V
Carton	40
Dimmer	Nie współpracuje
Emergency operating time	3h
Operating temperature	0°C/ +40°C
Operation mode	Awaryjny
Power factor	PF>0,4
Brand	Luxmena

Available executions

	Luminous flux	Color temperature	Degree of protection	Protection class
C91-SKL-S-3SC-AT3H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SO-AT3H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SX-AT3H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SC-AT3H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SO-AT3H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SX-AT3H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SC-AT2H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SX-AT2H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SO-AT2H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SC-AT2H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SX-AT2H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SO-AT2H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SC-AT1H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SX-AT1H-CNBOP	161lm	6000K	IP40	I
C91-SKL-S-3SO-AT1H-CNBOP	161lm	6000K	IP40	Soczewki: SO
C91-SKL-R-3SC-AT1H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SX-AT1H-CNBOP	161lm	6000K	IP40	I
C91-SKL-R-3SO-AT1H-CNBOP	161lm	6000K	IP40	I
C90-SKL2-R-3ZS-AT3H-WH	160lm	6500K	IP20	Class II
C90-SKL2-R-3ZS-AT3H-BL	160lm	6500K	IP20	Class II
C90-SKL2-S-3ZS-AT3H-WH	160lm	6500K	IP20	Class II
C90-SKL2-S-3ZS-AT3H-BL	160lm	6500K	IP20	Class II
C90-SKL2-S-ZMP-WH
C90-SKL2-S-ZMP-BL

Size

	Height	Length	Width
C91-SKL-S-3SC-AT3H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SO-AT3H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SX-AT3H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SC-AT3H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SO-AT3H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SX-AT3H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SC-AT2H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SX-AT2H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SO-AT2H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SC-AT2H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SX-AT2H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SO-AT2H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SC-AT1H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SX-AT1H-CNBOP	44mm	150mm	150mm
C91-SKL-S-3SO-AT1H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SC-AT1H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SX-AT1H-CNBOP	44mm	150mm	150mm
C91-SKL-R-3SO-AT1H-CNBOP	44mm	150mm	150mm
C90-SKL2-R-3ZS-AT3H-WH	39,5mm	130,5mm	130,5mm
C90-SKL2-R-3ZS-AT3H-BL	39,5mm	130,5mm	130,5mm
C90-SKL2-S-3ZS-AT3H-WH	32mm	129,8mm	129,8mm
C90-SKL2-S-3ZS-AT3H-BL	32mm	129,8mm	129,8mm
C90-SKL2-S-ZMP-WH	19,6mm	160mm	160mm
C90-SKL2-S-ZMP-BL	19,6mm	160mm	160mm
